Photoconductive antennas with LT-GaAs absorber layer
• Antenna length l: 40 µm
• Gap distance g: 5 µm
• Gap width w: 10 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 60 µm
• Gap distance g: 5 µm
• Gap width w: 10 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 100 µm
• Gap distance g: 5 µm
• Gap width w: 10 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 180 µm
• Gap distance g: 5 µm
• Gap width w: 10 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 870 µm
• Gap distance g: 5 µm
• Gap width w: 10 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 3000 µm
• Gap distance g: 5 µm
• Gap width w: 10 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 90 µm
• Finger distance g: 1 µm
• Gap width w: 10 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 180 µm
• Finger distance g: 1 µm
• Gap width w: 10 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Spiral angle: 4π
• Gap distance g: 5 µm
• Antenna diameter: 3000 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Spiral angle: 5π
• Gap distance g: 5 µm
• Antenna diameter: 3000 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote

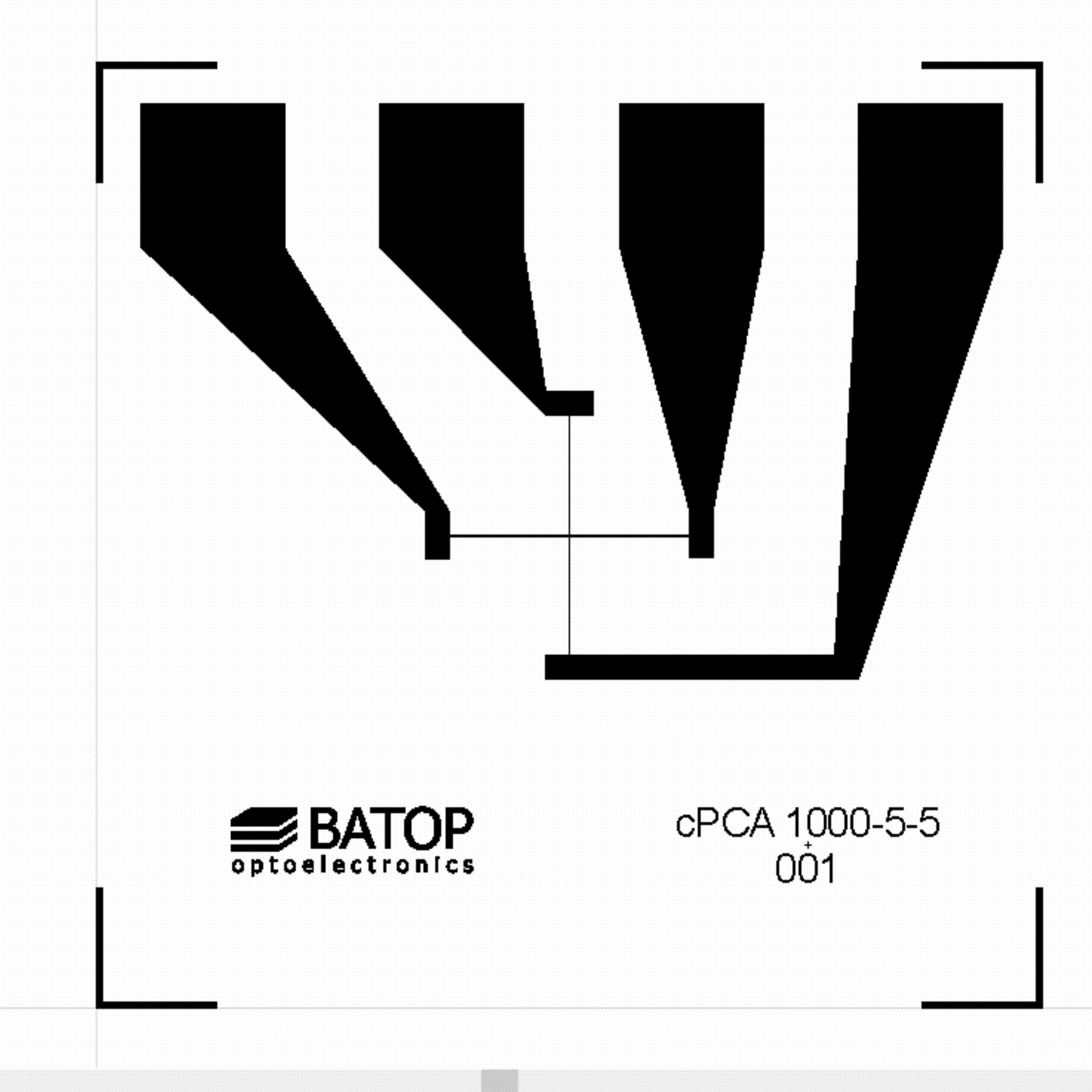

• Antenna length: 2 x 1000 µm
• Gap distance g: 5 µm
• Dipole width: 5 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 44 µm
• Gap distance g: 6 µm
• Gap width w: 10 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 44 µm
• Gap distance g: 16 µm
• Gap width w: 16 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 44 µm
• Large gap distance g: 34 µm
• Gap width w: 100 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 30 µm
• Gap distance g: 10 µm
• Gap width w: 10 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Antenna length l: 30 µm
• Gap distance g: 14 µm
• Gap width w: 14 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• Mounting & price table
• Quote
• Dipol length l: 21 µm
• Gap distance g: 5 µm
• Gap width w: 300 µm
• Array area: 300 µm x 300 µm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• x = h: mounted on hyperhemispherical Si lens
Price: 2,019.- €/pc
• x = c: mounted on elliptic collimating Si lens with 20 mm diameter
Price: 2,269.- €/pc
• Quote
• Dipol length l: 21 µm
• Gap distance g: 5 µm
• Gap width w: 1000 µm
• Array area: 1 mm x 1 mm
• Laser wavelength λ: ≤ 800 nm
• Data sheet (pdf)
• x = h: mounted on hyperhemispherical Si lens
Price: 2,265.- €/pc
• x = c: mounted on elliptic collimating Si lens with 20 mm diameter
Price: 2,515.- €/pc
• Quote
• x = 0: unmounted PCA chip
• Unmounted antenna chip
• Chip area 4.0 mm x 4.0 mm
• Chip thickness 625 µm
• Price: 674.- €/pc
• Quote
• x = h: on hyperhemisherical Si-lens
• x = c: on collimating Si-lens
• x = a: on aspheric focusing Si-lens
• x = c-f: fiber coupled
• Mounted TPX lenses
• Mounted focusing optical lens (-l)
• Pulse stretcher (PS-800)
• XYZ Translation Stage
